Function：
Ø Support 128 Channels IPC input（128 CH Preview+16CH playback）
Ø Support smart 265, H265,H264 compression format
Ø Support synchronized recording,remote view,backup recording in MP4 format, mobile view
Ø Support 4*HDMI homologous or heterologous output ,Single-screen 8K display
Ø Support preview image and playback image electronic amplification
Ø Support RTSP,GB28181, ONVIF protocol
Ø Support RTMP stream push, support DDNS,UPNP...etc
Ø Support alarm capture,send alarm information by email
Ø Support WEB, mobile view,IMS surveillance
Ø Support IPC smart analysis: Motion detection,Alarm input, Human detection,Area intrusion, Line crossing detection,Loitering detection, Off-post detection, Vehicle illegal parking,Retrograde detection
Ø Support channel patrol grouping
Ø Support network inspection-network traffic monitor, network-detect packet,network diagnosis..etc
Ø Support max 16CH 1080P playback
Ø Quick boot up and enjoy the experience.
Ø The brand-new UI interface ensures smooth operation
Ø Support 4K display output
Ø Support to add IPC manually or automatically in LAN
Ø Support to upgrade IPC online and by memory
Ø Support IPC maintenance and parameter configuration, etc
Ø Newly optimized, it has excellent compatibility with hard disks available on the market
Ø Support ANR, the function of re-recording after network disconnection
Ø Support the selection of video bitstream mode
Ø Optimize the access bandwidth, with the limit reaching 800Mbps
Ø Supports 0/1/5/6/10RAID,IPSAN,NAS storage
Specification：
Model | WS-NR116-E21-128 |
System | Embedded LINUX design |
Network Video Input Bandwidth | 800Mbps; |
Network Video Input | 128 CH 4K/12MP/8k |
Video Input | 4CH HDMI output,,HDMI homologous and heterologous output Mode 1: 1 HDMI output (12MP/D1+128 preview + 16-way playback); Mode 2: 2 HDMI outputs (12MP/D1+2 screens 64+64 preview + 16-way playback); Mode III: 4 HDMI outputs (8MP/D1+4 screens 36+36+36+36 preview+16-way playback); Resolution:8K，3840×2160,1920×1080,1440×900,1280×1024,1280×800,1024×768 |
Client Software | Support IMS preview , Support APP preview; |
Split Display | Support split,1/2/4/6/8 /16/25/36/64/128CH realtime preview |
Video Resolution | 720P/960P/1080P/3MP/4MP/5MP/4K/12MP/8K |
Video Decoding Format | Smart265/H.265/H.264 |
Decoding Capability | 1CH 8K/4CH 12MP/9 CH 4K/5MP/4MP/3MP/16CH 1080P |
Playback Capability | Synchronous playback 16 CH, 16 CH 1080P,9CH 4K，4 CH 12MP; IMS client can have a maximum of 4 CH |
Audio Parameters | Standard G.711A; Support HDMI audio output; Supports audio output (3.5mm hole); Supports audio input (3.5mm hole); Support audio and video preview and playback on the IMS client |
Storage Management | 16 * SATA port, max support 16TB HDD |
Video Type | Support timed video recording, alarm video recording, timed and alarm video recording;Alarm video（Motion detection,Alarm input, Human detection,Area intrusion, Line crossing detection,Loitering detection, Off-post detection, Vehicle illegal parking,Retrograde detection） |
Video Backup | Usb flash drive, portable hard drive, network download |
User Management | Max support 32 users |
Network Port | 2*RJ45 Ethernet port,10/100/1000M adaptive; Support TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, SMTP, GB28181 protocols, etc; |
Peripheral Interface | 3 * USB2.0 port(rear ); support mouse, USB upgrade, import and export，1* RS485 port |
Alarm Port | 16 alarm input ,8 alarm output |
E-Sata | 1 pcs E-Sata port |
Front Panel | 3* LED ( including power, data transfer,HDD) |
Buzzer | Buzzer alarm |
Business Function | Support preview/video recording/forwarding/remote service, Support alarm linkage, Support the LAN/WLAN monitoring of the IMS client; Support P2P cloud services |
Working Temperature | -10℃～＋55℃ |
Working Humidity | 10%～90% |
Power Consumption | AC100-240V 450W, |
Size (mm) | 431.5×521.2×133.2(W×D×H)mm |

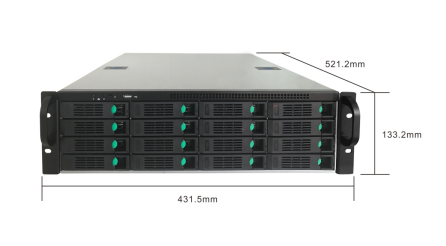

Product size nd interface：
