Operating system: Android 8.0 system
Processor: MTK 6739 Quad-core ARM@Cortex-A53 MPCore 1.45GHz/512KB unified L2 cache
Supports 4G SIM card slots

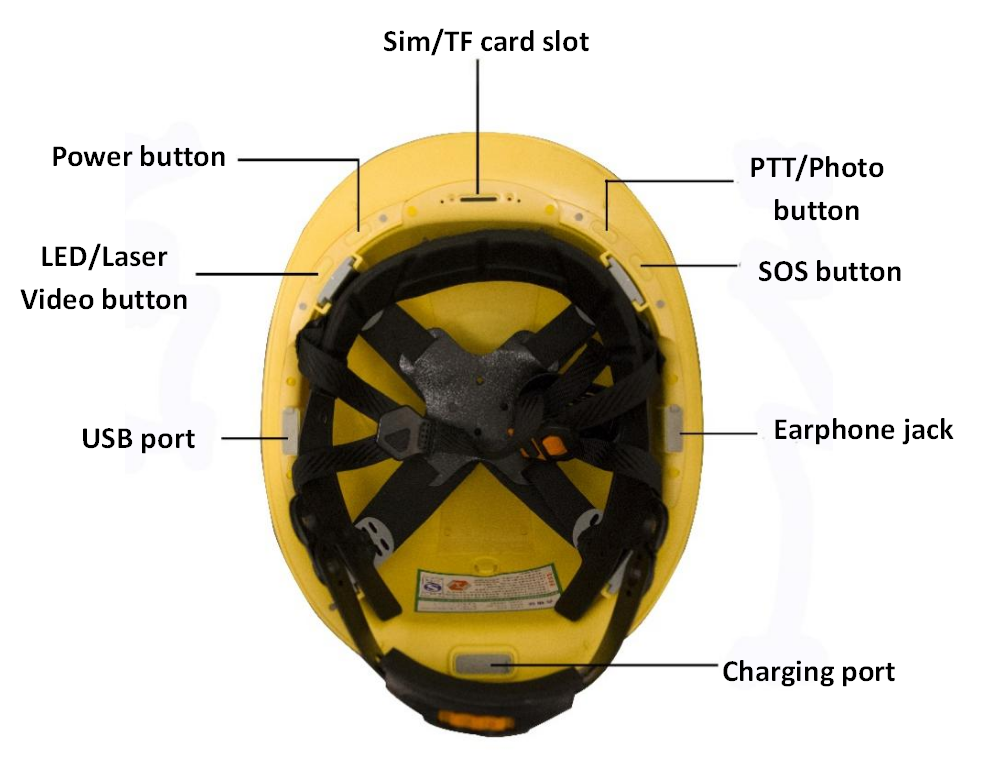

Buttons: power button, (video button, lighting, laser light)
Focus range: optical 0.5 meters ---- infinity, infrared camera effective distance 2-5 meters
Camera angle: optical 120 ° wide angle, infrared 40 °
Lighting distance: the human body can be seen in 20 meters in total darkness
Protection level: fully meet the special needs of the public security industry, IP66
Battery: High-performance polymer lithium battery 6000mAh
4G upload: request upload function (request background connection for real-time data upload)
Supervision and inspection: (upload of real-time data from back-end supervision and inspection)
Video and audio: video encoding resolution 1080P/720P MKV format
Video frame number: 1080P@30fps/720@30fps
Video bit rate: 256kbps-8Mbps
Wireless connection: Wi-Fi network supports 802.11b/g protocol, 2.4GHZ 5GHz
3G/4G network: support mobile B34 B38 B39 B4 0B41 full frequency band
Beidou positioning， GPS，
Bluetooth: BT4.0
Image frequency frame: 9Hz
Video format: MP4&MKV
Interface type: USB 2.0
Technical parameters | ||
Product model | WS-W20 | |
Operating System | Android 8.0 system | |
Running memory | 2G+16G | |
LED | 1W | |
Focus range | 0.5 m ---- Infinity | |
Camera Angle | 105 。ultra-wide Angle | |
Storage capacity | Standard 32BG (supports up to 128GB) | |
Night vision distance | Visible from 10 meters in a completely dark environment | |

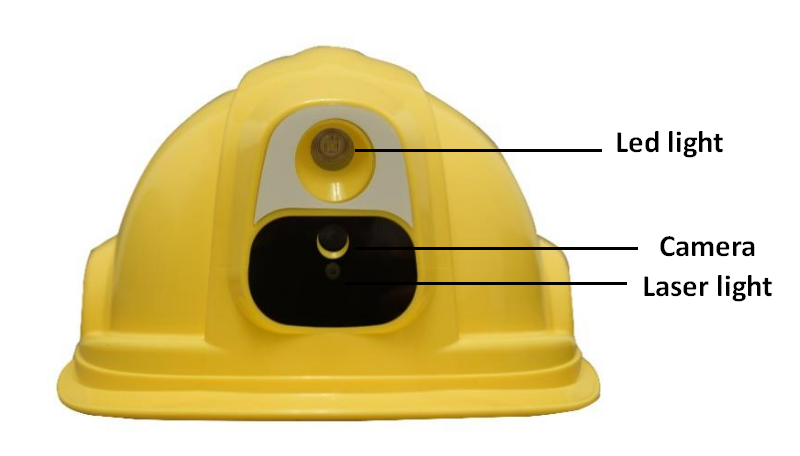

Target indication | With a laser beam to assist in shooting positioning | |
Working hours | Recording work continuously for more than 8 hours | |
Protection level | Fully tailored to the specific needs of the public security industry, it is designed with IP66 protection, and the body and data will not be damaged when dropped from a 2-meter-high bare machine | |
Supported frequency bands | TDD: B38 B39 B40 B41 FDD:B 1 3 5 8 4 7 28B | |

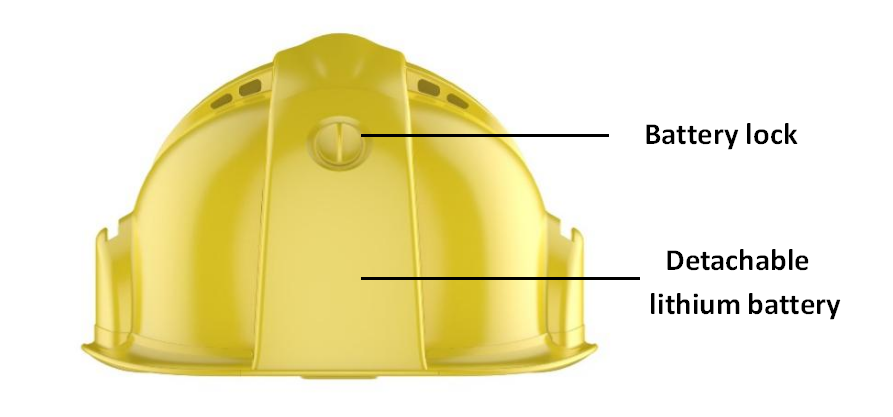

Battery | Equipped with a high-performance polymer external replaceable lithium battery with a capacity of up to 4500mAh, which can be expanded to 6000mAh to ensure the device works for a long time. | |
Photo | 16 million pixels JPEG format | |
4G upload | Request Upload function (Request background connection for real-time data upload) | |
Supervisory Patrol (Back-end Supervisory Patrol real-time data upload) | ||
Video and audio | Video encoding resolution | 1080P/720P mp4 format |
Video frame rate | 1080P@30fps/720@30fps | |
Video bitrate | 256kbps-8Mbps | |
Wireless connection | Wi-fi network | Supports 802.11b/g protocol, 2.4GHZ, 5.8GHZ |
2G/3G/4G networks | Supports full network compatibility (China Mobile, China Unicom, China Telecom) /nano card | |
GPS/ Beidou positioning | Built-in Beidou global positioning module | |
Bluetooth | luetooth: BT4.0 | |
Other | Weight | 600g |
Size | Length/Width/height 289*233*150mm | |
LED indicator lights | With LED white light to assist with color recording at night | |
Operating temperature | -30。C to +70。C | |
Back-end management platform | Live playback | Supports live 160 channels of data |
Beidou positioning movement trajectory | Supports viewing movement tracks, electronic fences | |
Data Upload | Supports D1 H.264 data upload | |
Wireless intercom | Live 4G network wireless intercom | |
White light parameters | Voltage | 2.85 3.6 V |
Current | 350MA-1A | |
Color temperature | 5000-10000K | |
Luminous flux | MAX 250 lumens (@1000mA) | |
Luminescent Angle | 115-130 degrees | |
Power | 1W | |
Light distance | Up to 20 meters |
