WS-I3R18-MB06-F28MPH | |
Chippest | Embedded LINUX， |
Sensor | 1/3" 2MP CMOS |
Min.illumination | 0Lux/F1.4 (IR ON) ， Color: 0.02Lux@F1.2，B/W: 0.002Lux@F1.2 |
IR distance | 10-15m(Dual light source) |
S/N Ratio | 50dB |
Lens | 2.8.mm，3.6mm/6mm/8mm M12 lens optional |
Day/ Night | ICR Day and night |
Output | PAL/NTSC adjustable |
WDR | DWDR |
BLC | ON/OFF |
DNR | 3D NR |
White Balance | Support AWB/Manual |
Video Parameter | Brightness, contrast, saturation, exposure, H/V mirror adjusted |
Video Encoding | H.264/H.265 |
Bit Rate/Frame Rate | 32Kbps~6144Mpbs |
Audio Encoding | G.711U、G.711,Support two-way voice intercom |
Max. Resolution | Main stream：5MP(2880*1624)@20fps/4MP(2560*1440)@30fps，3MP(2304*1296)@30fps，2MP(1920*1080)@30fps， Sub-stream：448P(800*448)30fps/D1(704*576)30fps/360P(640*360 )30fps/CIF(352*288)30fps， Support CBR/VBR |
Smart | Intrusion detection/Tripwire crossing detection/Off-duty detection/Passenger flow statistics |
Smart voice Broadcast | Support (referring to a machine with a horn) |
AI Box Shows | Support |
Alarm light | Support (of a machine with a white light) |
Motion Detection | Support |
Event linkage | Support linkage video recorder screen, local voice, AI video, push and other functions |
Browser | Supports IE，Edge，Google，Firefox |
OSD | Title, time and date superimposed |
Onvif | Support ONVIF 2.4 |
P2P | Support Apple, Android |
Network protocol | Support ONVIF，P2P，CGI，HTTP，TCP/IP，IPv4，RTSP，UDP，NTP，DHCP，DNS， |
Network Interface | RJ45 10M/100M network adaptive |
Audio input output | MIC |
TF card | / |
Alarm input | / |
Operating Temperature | -30°C ~ 60°C |
Operating Humidity | 0﹪-90﹪ |
Protection Grade | IP66 |
Power Supply | DC12V，POE |
Power Consumption (max) | <5W |

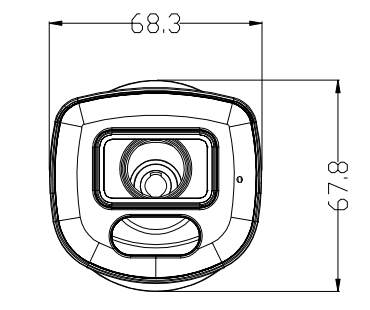

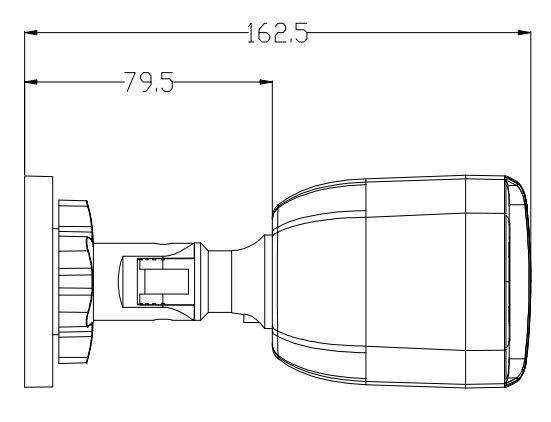

Dimensions(mm) | 162.5(L)*68.3（W）*67.8（H）mm |
